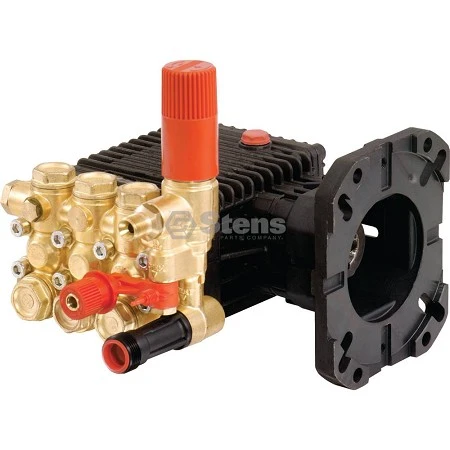

BMI Gas Flanged Pump – General Pump EZ3040GUI

Gas Flanged Pump General Pump EZ3040GUI Bore Size: 0.591″ Bore Size 0.591″ Gallons Per Minute 4 GHP 14.4 Type Horizontal Gas Flanged Made By An OEM SupplierEZ Series 44, Triplex plunger pump, SAE J609BFlanged for direct couple to gasoline engines up to 13 HP; hollow shaftHollow shaft diameter 1″; Forged brass manifold with exclusive lifetime warrantyMaximum inlet pressure: 125 PSIMaximum fluid temperature: 165? FInlet port thread 1/2″-14 BSP-F and Discharge port thread 3/8″-19 BSP-FPump dimensions 8.8″ x 9.7″ x 6.5″Maximum inlet vacuum 3 ft., water (2.6″ Hg)Crankcase oil capacity 14 oz.Manufacturer warranty applies

Gas Flanged Pump

General Pump EZ3040GUI

Specs:
Bore Size: 0.591″ Bore Size 0.591″ Gallons Per Minute 4 GHP 14.4 Type Horizontal Gas Flanged Made By An OEM SupplierEZ Series 44, Triplex plunger pump, SAE J609BFlanged for direct couple to gasoline engines up to 13 HP; hollow shaftHollow shaft diameter 1″; Forged brass manifold with exclusive lifetime warrantyMaximum inlet pressure: 125 PSIMaximum fluid temperature: 165? FInlet port thread 1/2″-14 BSP-F and Discharge port thread 3/8″-19 BSP-FPump dimensions 8.8″ x 9.7″ x 6.5″Maximum inlet vacuum 3 ft., water (2.6″ Hg)Crankcase oil capacity 14 oz.Manufacturer warranty applies

Fits Models:

OEM Cross Reference:
General Pump EZ3040GUI
